Rooftop distributed photovoltaic power station is usually the use of shopping malls, factories, residential buildings and other rooftop construction, with self-built self-generation, the characteristics of the nearby use, it is generally connected to the grid below 35 kV or lower voltage levels.
Way a concrete foundation installation

According to the construction method can be divided into: prefabricated concrete base and direct pouring base.
According to its size can be divided into: independent base foundation and composite base foundation.
Use in distributed photovoltaic power plants: concrete flat roofs.
Advantages: strong bearing capacity, good flood and wind resistance, reliable forces, no damage to the concrete roof, good strength, high precision, and simple and convenient construction, no need for large construction equipment.
Disadvantages: increase the load of the roof, large amount of reinforced concrete required, more labor, long construction period, and higher overall cost.

1）Independent base foundation
The independent base is a front and rear bracket placed separately on the concrete flat roof, and the independent base is divided into square column and round column according to the shape of the column.
a. Square column
Square column base is divided into: bracket and cement foundation base screw connection, bracket together with cement foundation poured, bracket directly pressed under the concrete foundation groove, concrete directly placed on the bracket.

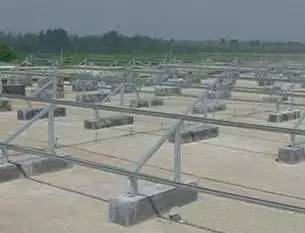

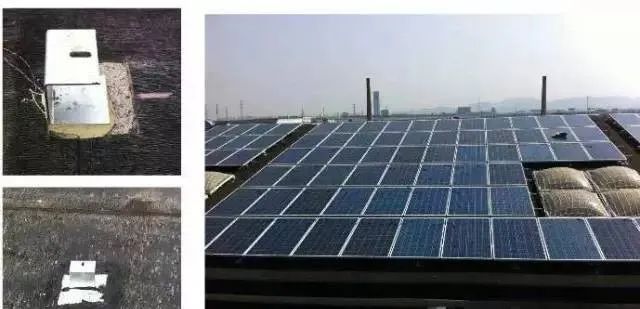

Fig. 1 Screw connection between bracket and concrete foundation base

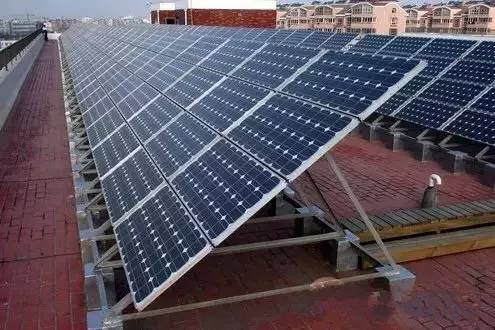

Fig. 2 The bracket is poured together with the concrete foundation

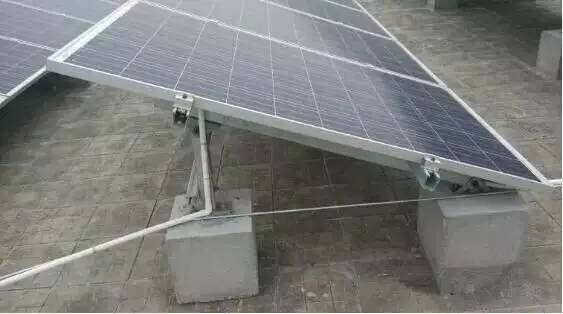

Fig. 3 Bracket pressed directly under the concrete foundation recess

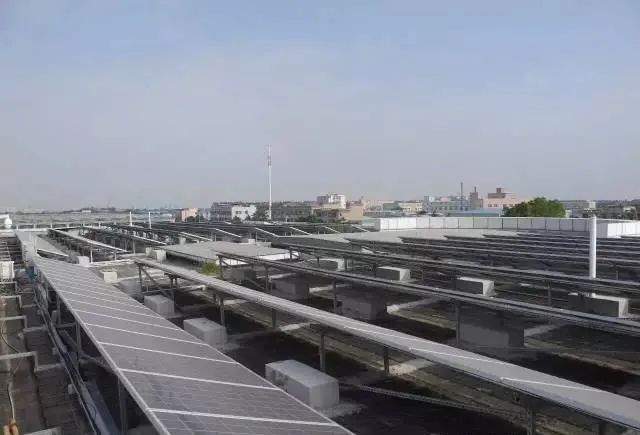

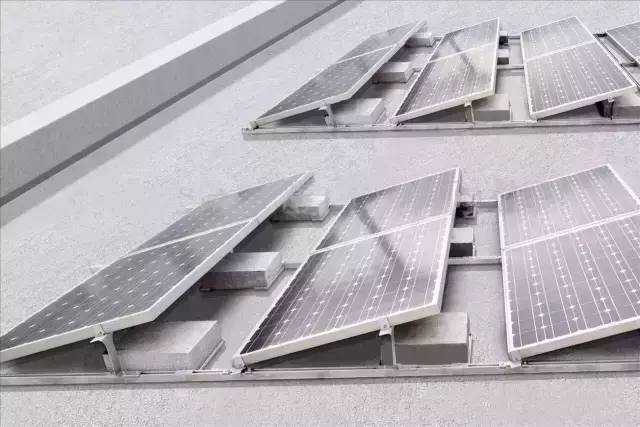

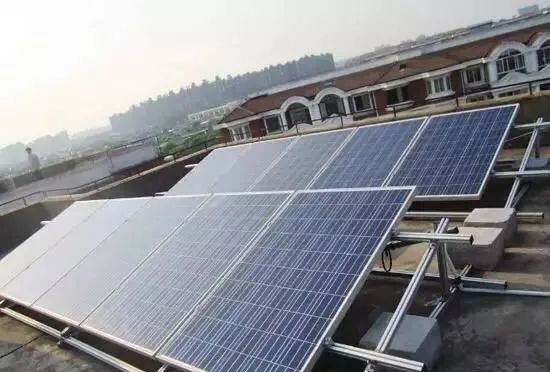

Fig. 4 Concrete placed directly on the bracket

b. Round column
The round column base is divided into: bracket and concrete foundation base screw connection, bracket together with concrete foundation pouring from the connection method.

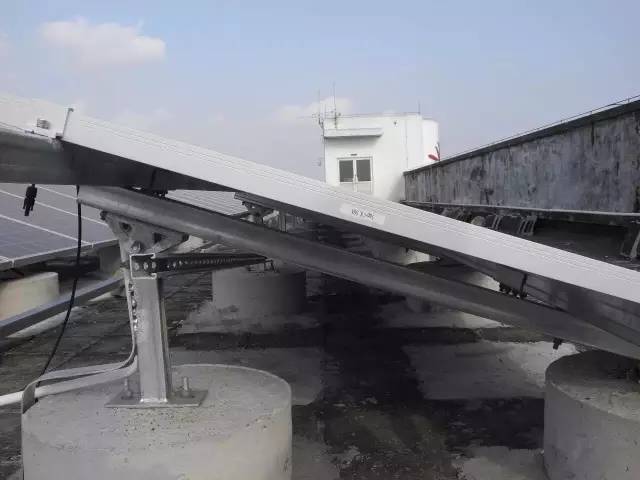

Fig. 5 Screwed connection between bracket and concrete foundation base

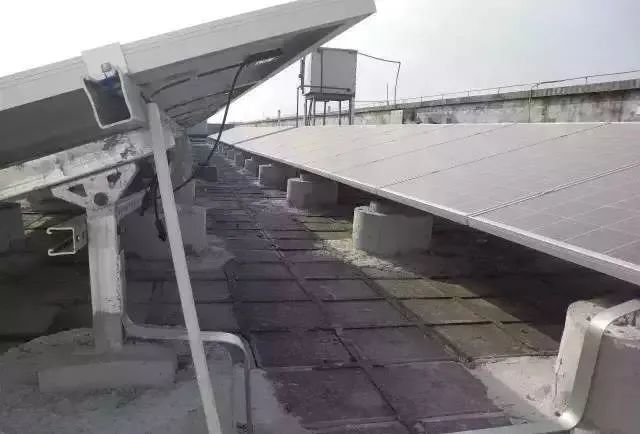

Figure 6 bracket together with concrete foundation pouring

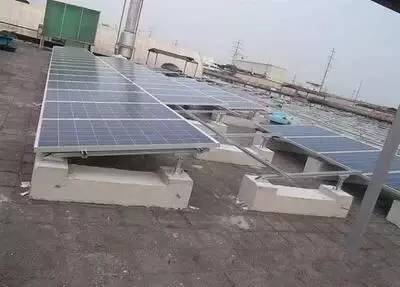

2）Composite base foundation
Composite base foundation, also called strip foundation, connects the front and rear brackets into one, which has better resistance to load.
Its connection with the bracket can be divided into: bracket and concrete foundation base screw connection and bracket together with cement foundation pouring.

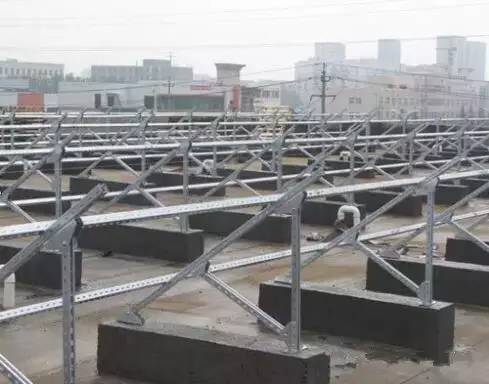

Fig. 7 Screw connection between bracket and concrete foundation base

Fig. 8 The bracket is poured together with the concrete foundation

Way two fixture installation

Materials can be divided into: aluminum profiles, hot-dip galvanized steel, aluminum alloy, stainless steel, etc.
Scope of application: mainly applied to color steel tile roof and glazed tile pitched roof.
Features: light weight, low cost, high reliability and convenient installation.
As there are many kinds of structures of color steel, there are also more types of fixtures, only some of the fixture types are listed below.

1）Installation fixture of color steel tile (clamping)
Applicable color steel tile types: angle chipping three types, upright locking edge structure.

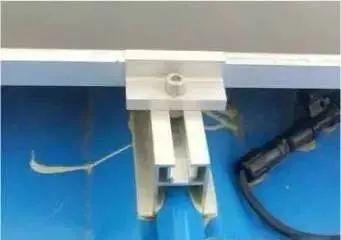

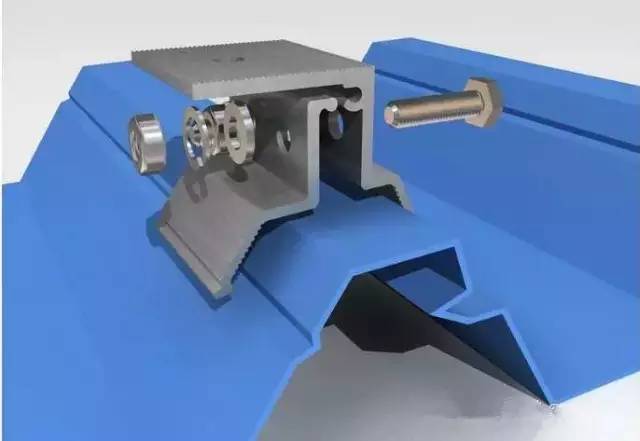

Fig.9 Installation jig of color steel tile (clamping)

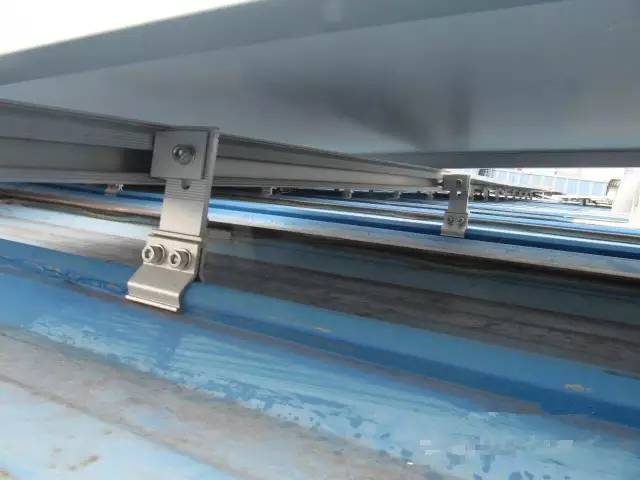

Figure 10 Installation jig of color steel tile (clamping)

2）Saddle support
Applicable color steel tile type: angle chipping three types, upright locking edge structure, trapezoidal structure.
The connection method with color steel tile is divided into: bonding (as shown in Fig. 12) and bolt fixing (as shown in Fig. 13).

Figure 11 Bonding

Figure 12 Bolt fixing

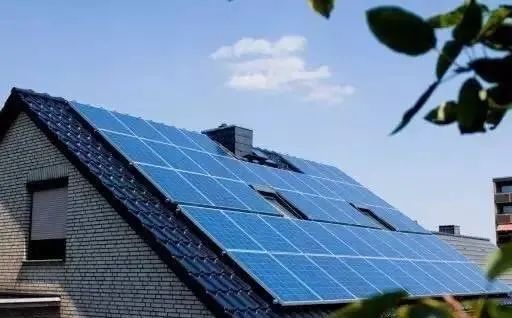

3）Fixed base of glazed tile hook

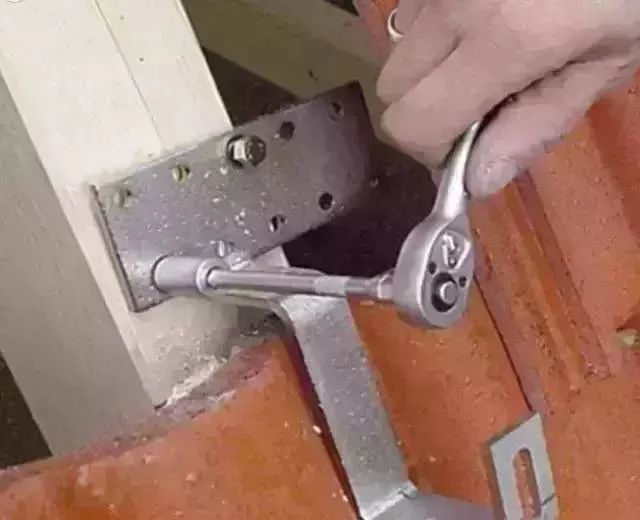

Fig.13 Hook is fixed on the beam with bolts

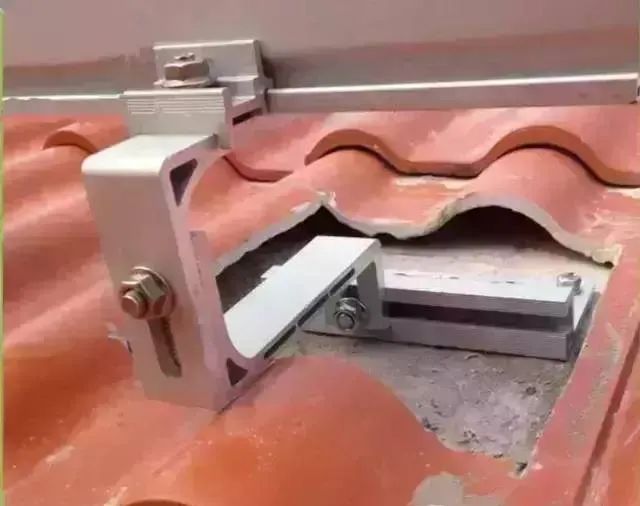

Fig. 14 Hook fixed on concrete floor slab with expansion bolt

Way three bracket and roof bonding installation

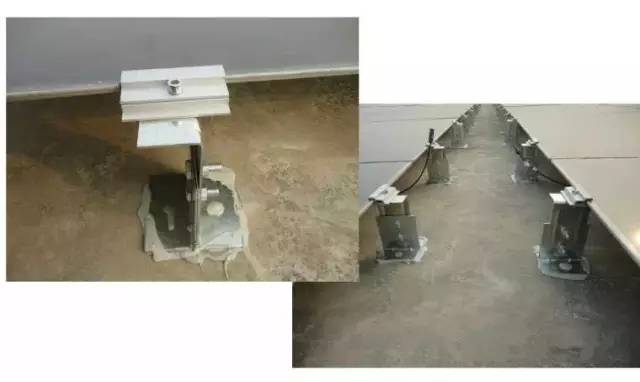

Figure 15 The bracket is directly connected to the floor slab

Figure 16 The base of the bracket is glued to the roof with construction adhesive

Figure 17 Metal bracket embedded in the roof
